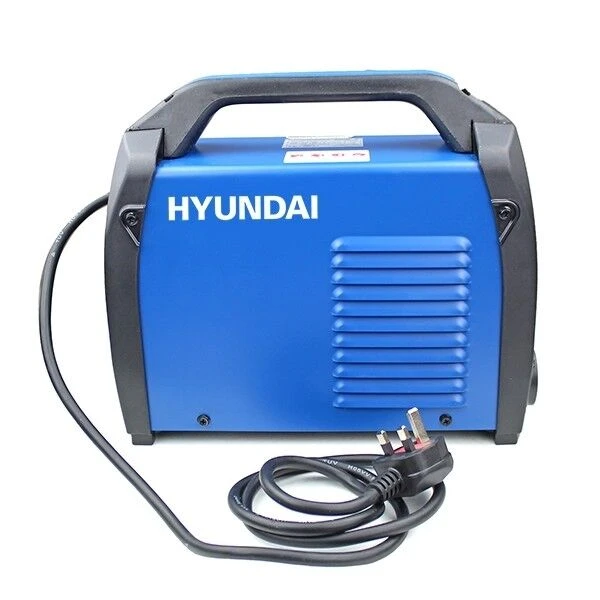

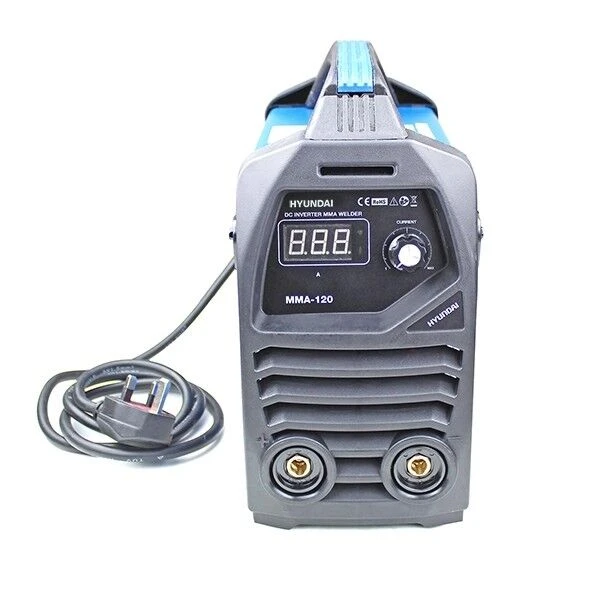

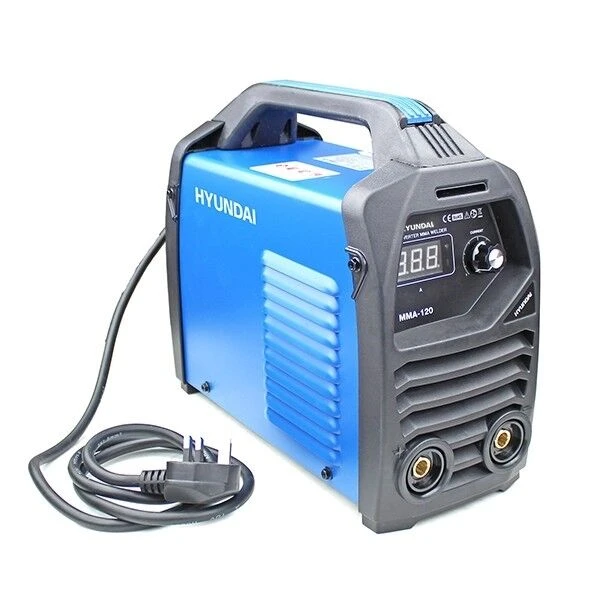

Hyundai HYMMA120 MMA/ARC Inverter Welder 120Amp

Hyundai HYMMA120 MMA/ARC Inverter Welder 120Amp

The HYMMA-120 is a lightweight and incredibly versatile single phase ARC/MMA welder from Hyundai. The HYMMA-120 is capable of welding mild steel up to 6mm.

Weighing only 6.0kg, the HYMMA-120 is easy to carry around thanks to its adjustable harness and lightweight pressed steel case with powder coated finish for extra corrosion resistance. Accessories include electrode holder with 2m cable, earth clamp with 1.5m cable, chipping hammer and wire brush making the HYMMA-120 extremely cost effective.

The HYMMA-120 ARC welder features a stepless regulator for infinite variable control of the welding current with a low current facility for effective welding of thinner materials. The welding (output) current of the HYMMA-120 can be regulated within the range of 20-120 Ampere making the HYMMA-120 adjustable to suit welding different materials and thicknesses of steel.

Beware of lower quality models by always checking the ‘Duty Cycle’. Duty cycle is the amount of time, within a 10 minute period the welder can be used, on a given output. For example, our 120A welder has a duty cycle of 35% when used on 120A output. This means it can be used for three and a half minutes in every 10 minute period.

Cheaper, lower quality welders claim to be a certain Amperage output, but can have a very low duty cycle on the output they have claimed. Always check the duty cycle to ensure you are getting the best value for money.

The inverter technology used within the Hyundai welders has certain advantages compared to more traditional transformer welders. The inverter type welders are usually lighter, more cost effective and usually require less input power for a comparable output. This makes them more cost effective not only to purchase, but also to run.

Fitted with thermal overload protection to ensure maximum durability. Suitable for welding steel, stainless steel, copper, nickel, titanium and their alloys.

Suitable for fabricators, farmers, home mechanics, mobile technicians and DIY enthusiasts the HYMMA-120 is a good all rounder for welding with rods up to 3.2mm. The HYMMA-120 features high frequency starts allowing for smooth arc strikes.

With low service and maintenance requirements, the HYMMA-120 is incredibly easy to use and maintain, and has full Hyundai UK parts back up.

Specifications:

• Input voltage: 230v
• Max input: 4.8kVA
• Efficiency: 83%
• Power factor: 0.7Cos
• No-load voltage: 65v
• Rated output range: 20-120Amps
• Duty cycle (%) under 40deg: 35% @ 120A, 60% @ 90A, 100% @ 70A
• Current @ 60%: 90A
• Usable electrode: 1.0-3.2mm
• Weight: 6kg
• 2 Years manufactures warranty
