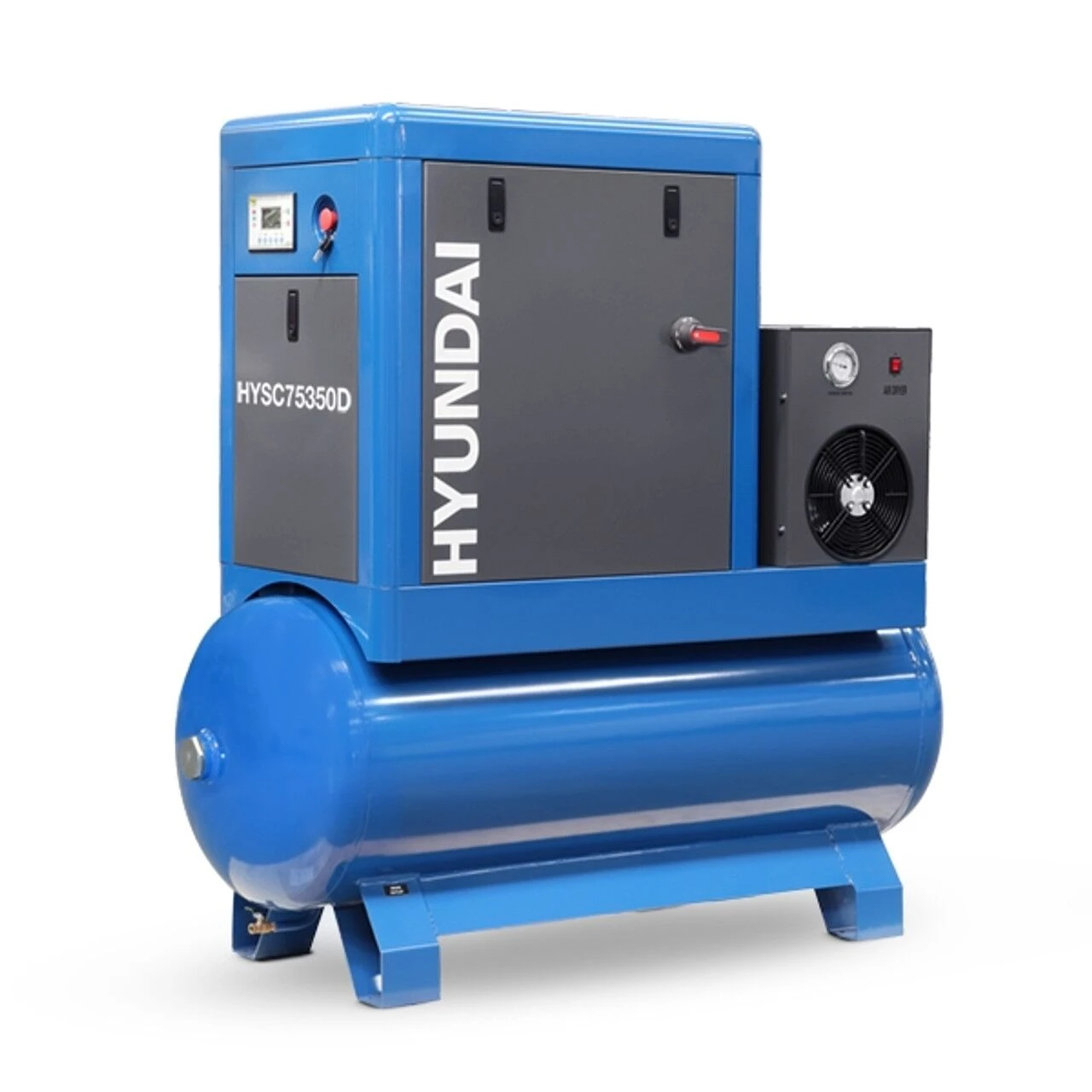

Hyundai HYSC75350D Screw Air Compressor 28cfm 350-Litre 415v

Hyundai HYSC75350D Screw Air Compressor 28cfm 350-Litre 415v

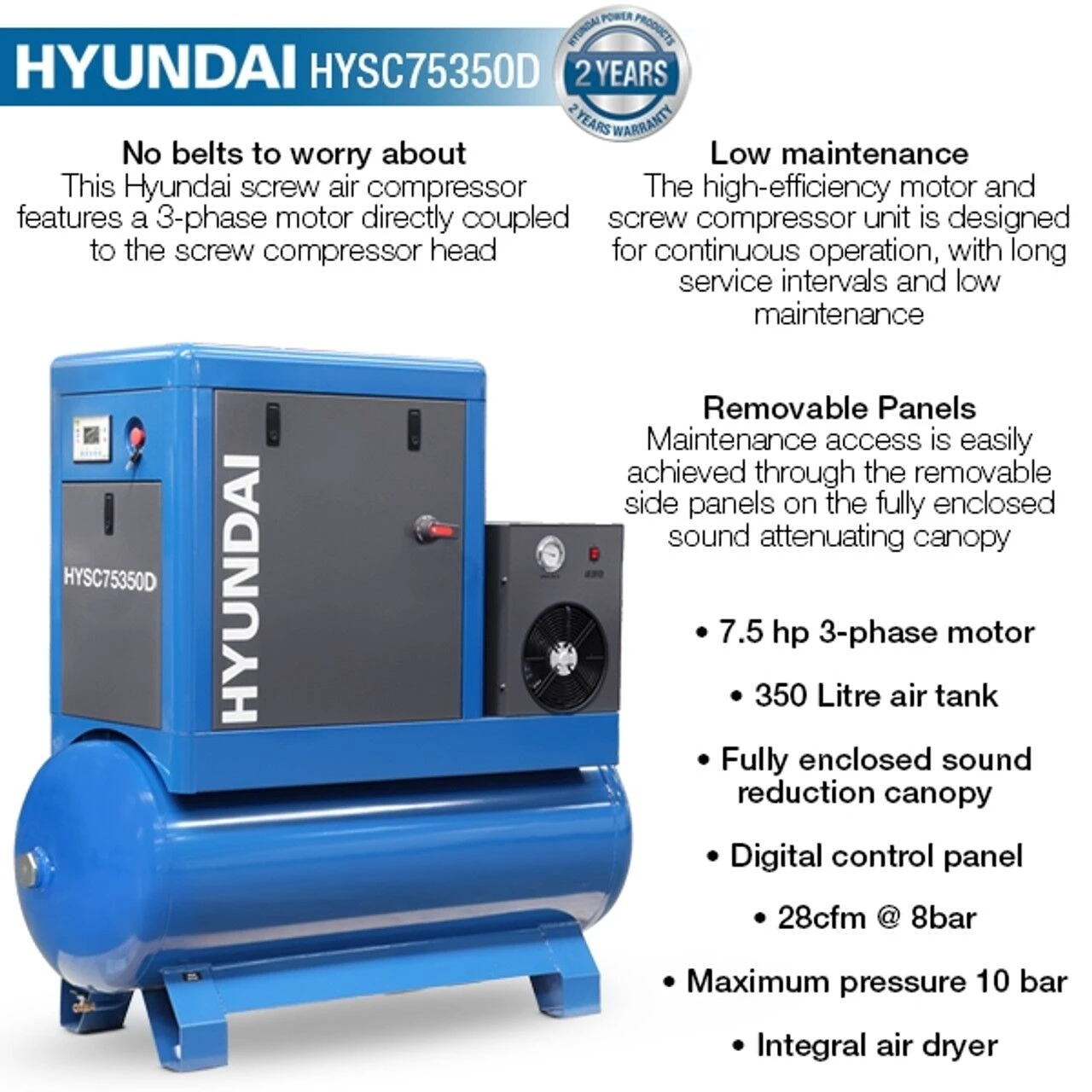

This Hyundai screw air compressor features a 350 litre tank, 7.5hp 3-phase motor directly coupled to the screw compressor head, so no belts to worry about.

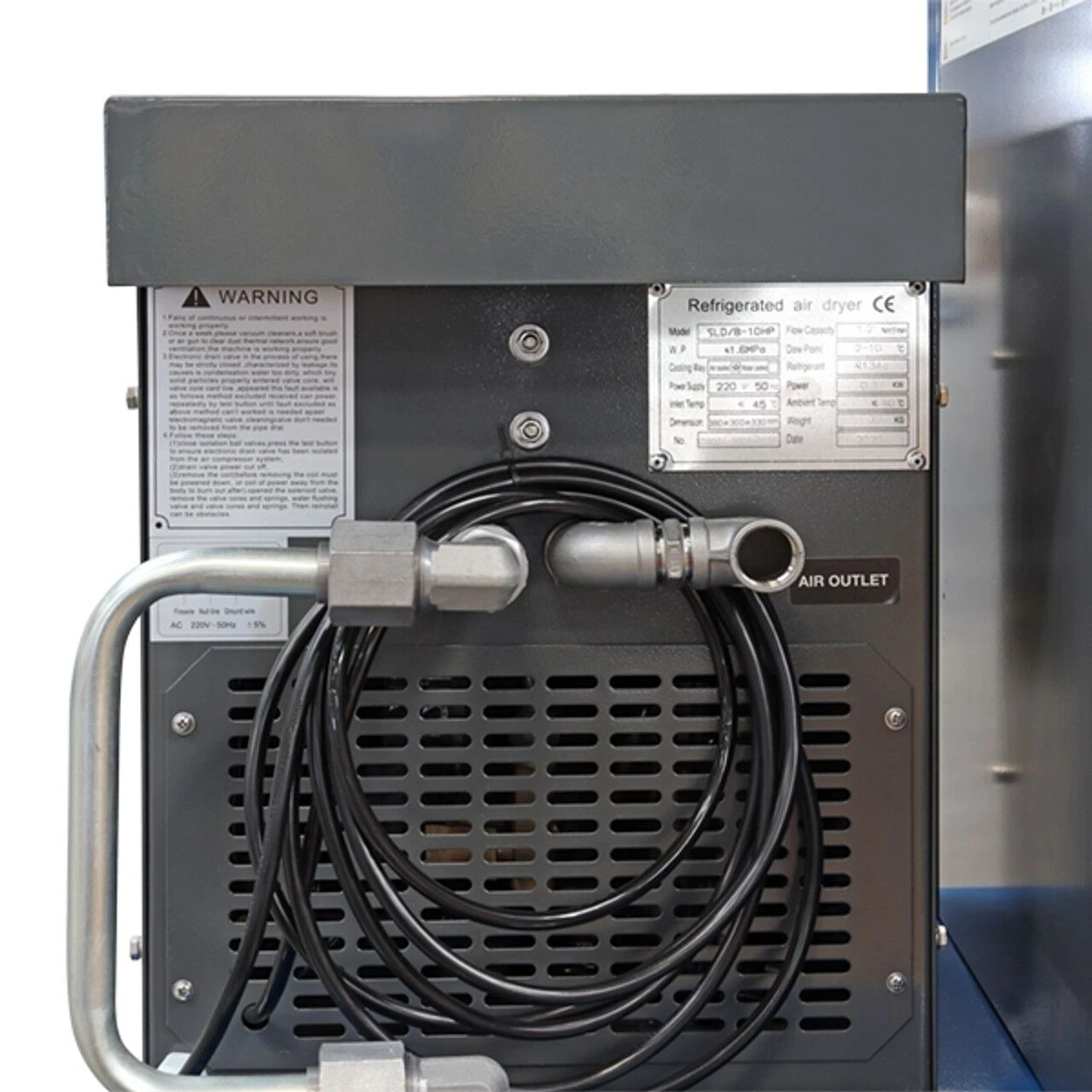

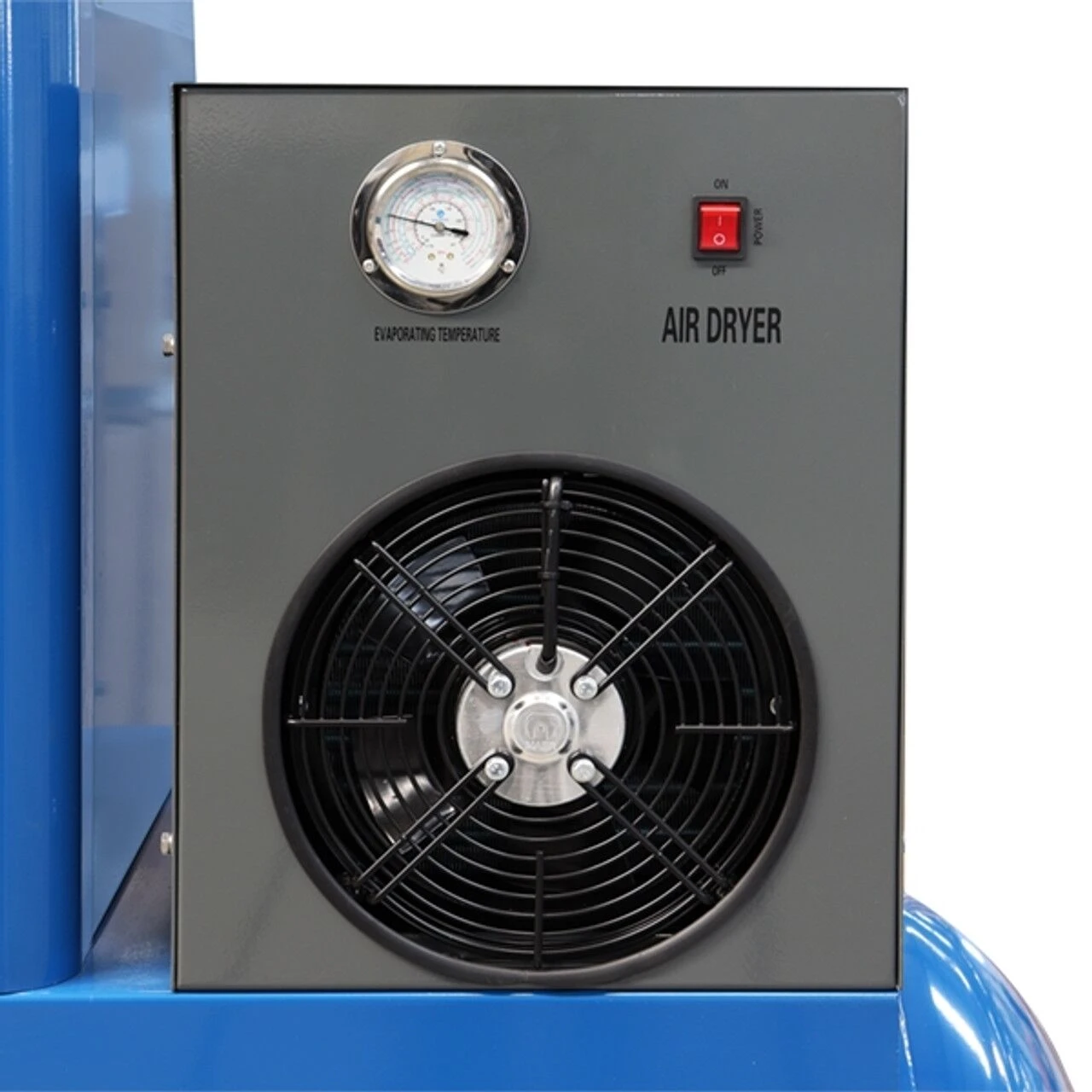

The high-efficiency motor and screw compressor unit is designed for continuous operation, with long service intervals and low maintenance and features an integral air dryer to remove moisture entering the tank.

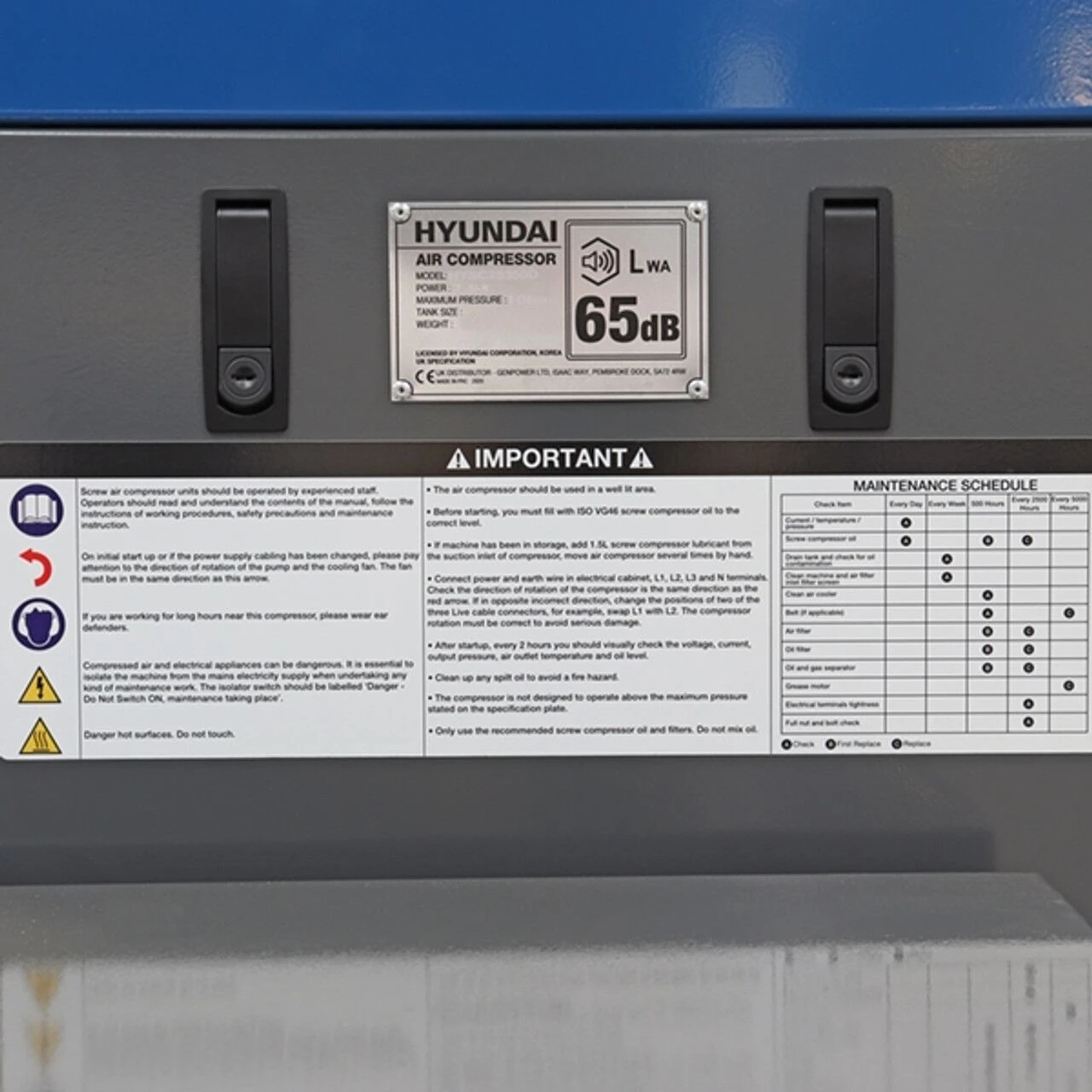

 Full maintenance access through easy to remove side panels on the fully enclosed sound attenuating canopy.The digital control panel monitors pressure, volts, amps, hours. The 350-Litre tank forklift transport holes, a 3/4in outlet fitting and water drain tap with CE certification to 12 bar.

Specifications:
–  Starting method: Electric.
–  Drive type: fixed speed direct drive.
–  Tank capacity: 350 litre.
–  Tank material: steel.
–  Cut-In pressure: 101.5psi /  7bar.
–  Cut-Out pressure: 116psi / 11.5bar.
–  Discharge pressure: 145psi / 10bar.
–  Max. pressure: 145psi / 110bar.
–  Air flow FAD: (L/min) 570 @ 8 bar / 522 @ 10 bar.
–   Air flow FAD:(CFM) 26.6 @ 8 bar / 22.8 @ 10 bar.
–  Air displacement: (L/min) 600 @ 8 bar / 550 @ 10 bar.
–  Air displacement:(CFM) 28 @ 8 bar / 24 @ 10 bar.
–  Rated power: 7kW.
–  Motor power: 5.5kW / 7.5hp.
–  Speed: 2960rpm.
–  Weight: 380kg.

This product currently cannot be delivered to Northern Ireland.

Hyundai – New thinking, new possibilities!
