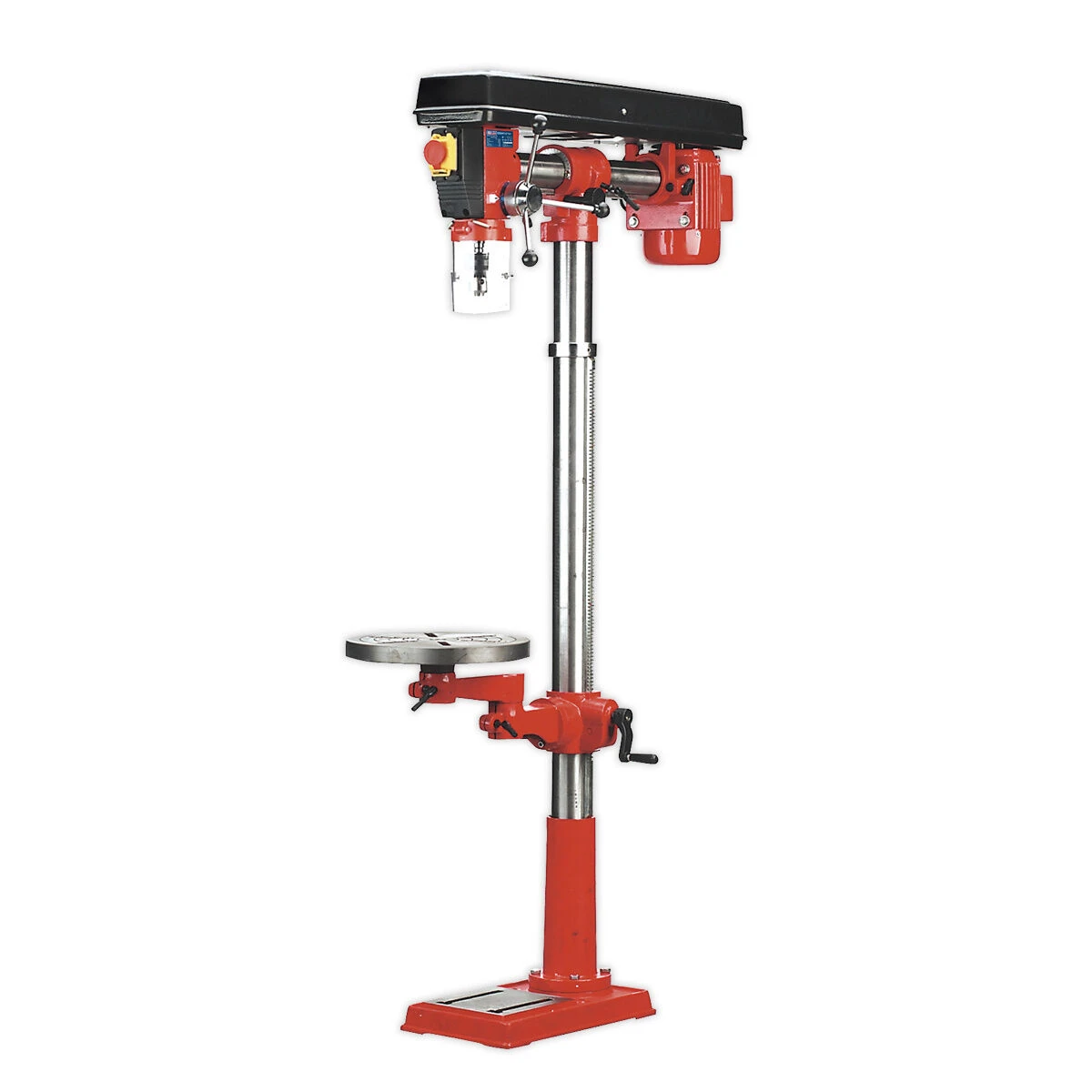

Sealey Rapid Floor Pillar Drill 5-Speed 240v 1620mm

Sealey Rapid Floor Pillar Drill 5-Speed 240v 1620mm

Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.

Features:
– Heavy-duty construction.
– Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
– Radial feature allows off-table drilling and angle drilling.
– Features a maximum throat depth of 420mm.
– Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
– Also available as bench mounting type – GDM790BR.

Specifications:
– Model No: GDM1630FR
– Base Size: 420 x 250mm
– Collar Diameter: 60mm
– Column Diameter: 70mm
– Drilling Capacity (Chuck Size): 16mm
– Maximum Distance Spindle to Base: 1280mm
– Maximum Distance Spindle to Table: 830mm
– Motor Power (Start): 350W(550W)
– Nett Weight: 59kg
– Number of Speeds: 5
– Optional Accessories: GDMX/KC – Keyless Pillar Drill Chuck 16mm
– Overall Height: 1620mm
– Radial Arm Travel: 285mm
– Speed Range: 500-2450rpm
– Spindle Centre to Column: 420mm
– Spindle Nose Taper: MT2
– Spindle Travel: 80mm
– Supply: 240v
– Swing: 840mm
– Working Base Surface Size: 210 x 190m

1 Year Manufacturers Warranty
