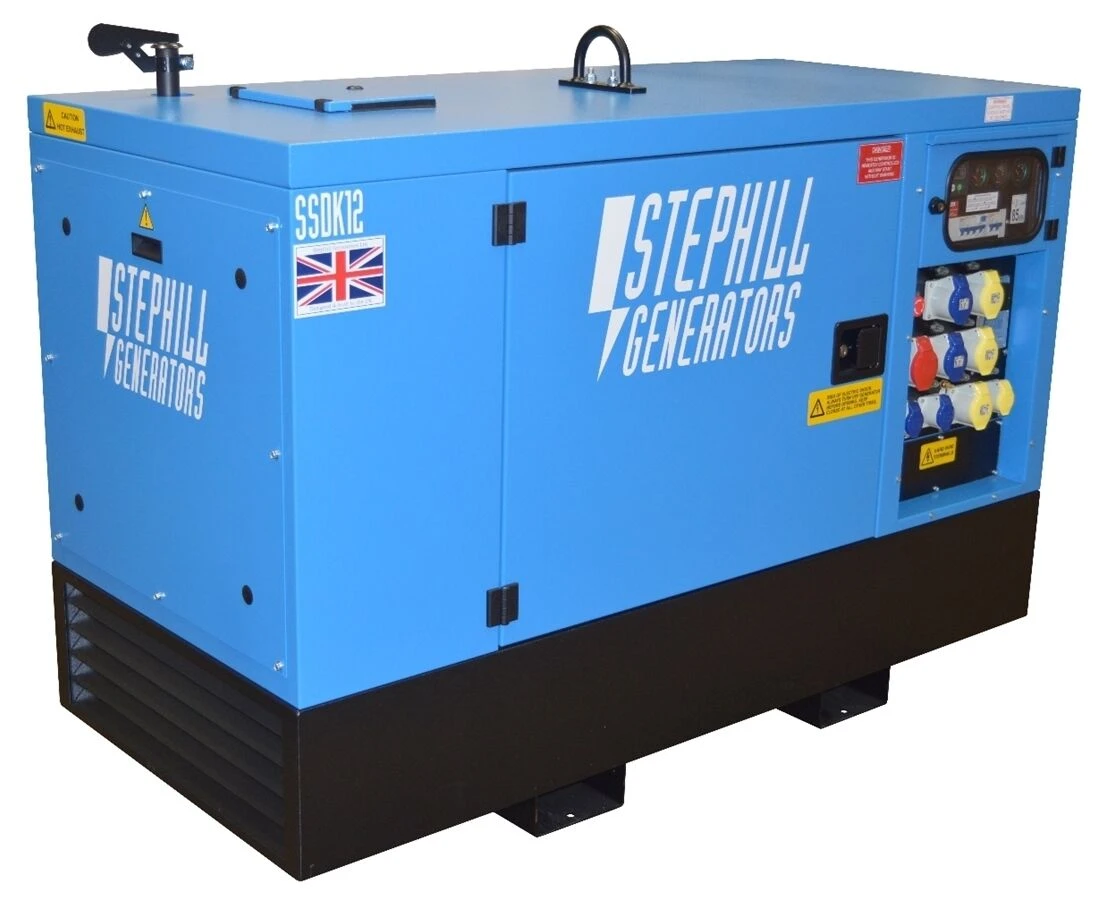

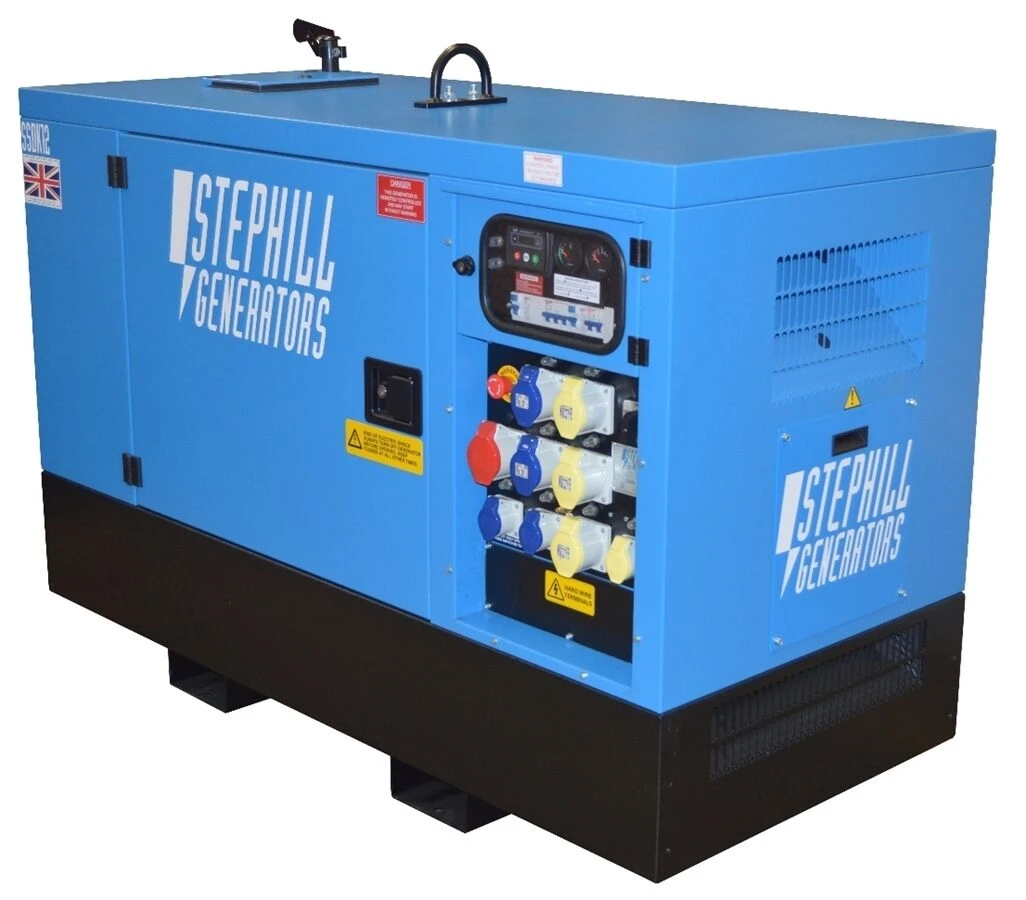

Stephill SSDK12M Super Silent Diesel Generator 9.6kW/12.0kVA (Multiphase / 400v, 230v & 115v)

Stephill SSDK12M Super Silent Diesel Generator 9.6kW/12.0kVA (Multiphase / 400v, 230v & 115v)

Extremely versatile Multi-phase generators for hire fleets, construction, outdoor event, utility and standby applications. Close fitting acoustic canopy, fully bunded long range tank with connections for remote fuel supply, comprehensive control panel with Deep Sea control system and multiple socket outlets. Telemetry option for remote operation and monitoring.  Applicable for supplying power to varying electrical load for unlimited hours in accordance ISO 8528-1.

Features:

• MCB overload protection
• RCD protection on 400V & 230V
• Hard wire terminals 400V & 230V
• Fuel, oil & temperature gauges
• Fuel pump prime button (easy bleed upon service)
• Remote start connections
• Emergency stop
• DSE 3110 control module
• Low oil pressure and high engine temperature shutdowns
• Low fuel level warning
• Zintec weatherproof enclosure
• Lifting eye
• Heavy duty base with fork lift pockets
• 3-Way valve (1/4″ BSP) for an external tank
• Oil drain facility
• Battery isolator & emergency stop button for safety
• Bunded fuel tank

Specifications:

• Standby Power (ESP): 400V @ 13.7 kVA / 10.9 kW
• Standby Power (ESP): 230/115V @ 12.9 kVA / 10.3 kW
• Prime Power (PRP): 400V @ 13.0 kVA / 10.4 kW
• Prime Power (PRP): 230/115V @ 12.3 kVA / 9.8 kW
• Sockets: 400V : 1 x 400V 32A & 1 x spurred 230V 16A BS4343 sockets & 230V : 2 x 230V 32A & 1 x 230V 16A BS4343 sockets & 115V : 3 x 115V 32A & 1 x 115V 16A BS4343 sockets
• Engine: Kubota V1505-BG
• Cylinders: 4
• Fuel type: Diesel
• Start: Electric Start with Remote start connections
• Fuel tank: 195 Litres
• Run time: 32 Hours @ 100% load – 41 Hours @ 75% load – 67 Hours @ 50% load – 133 Hours @ 25% load
• Noise level: 60dB (A) @ 7 metres. 85LWA
• Dimensions (LxWxH): 1800x800x1270mm
• Weight: 610kg

About Stephill:
Stephill Generators are the largest UK power generator manufacturer of Honda, Kubota, Yanmar, Perkins and Lister portable generators. All Stephill Generators are designed and built to the highest standards, and are used widely in the construction industry due to their reputation for being reliable, robust and long lasting.
